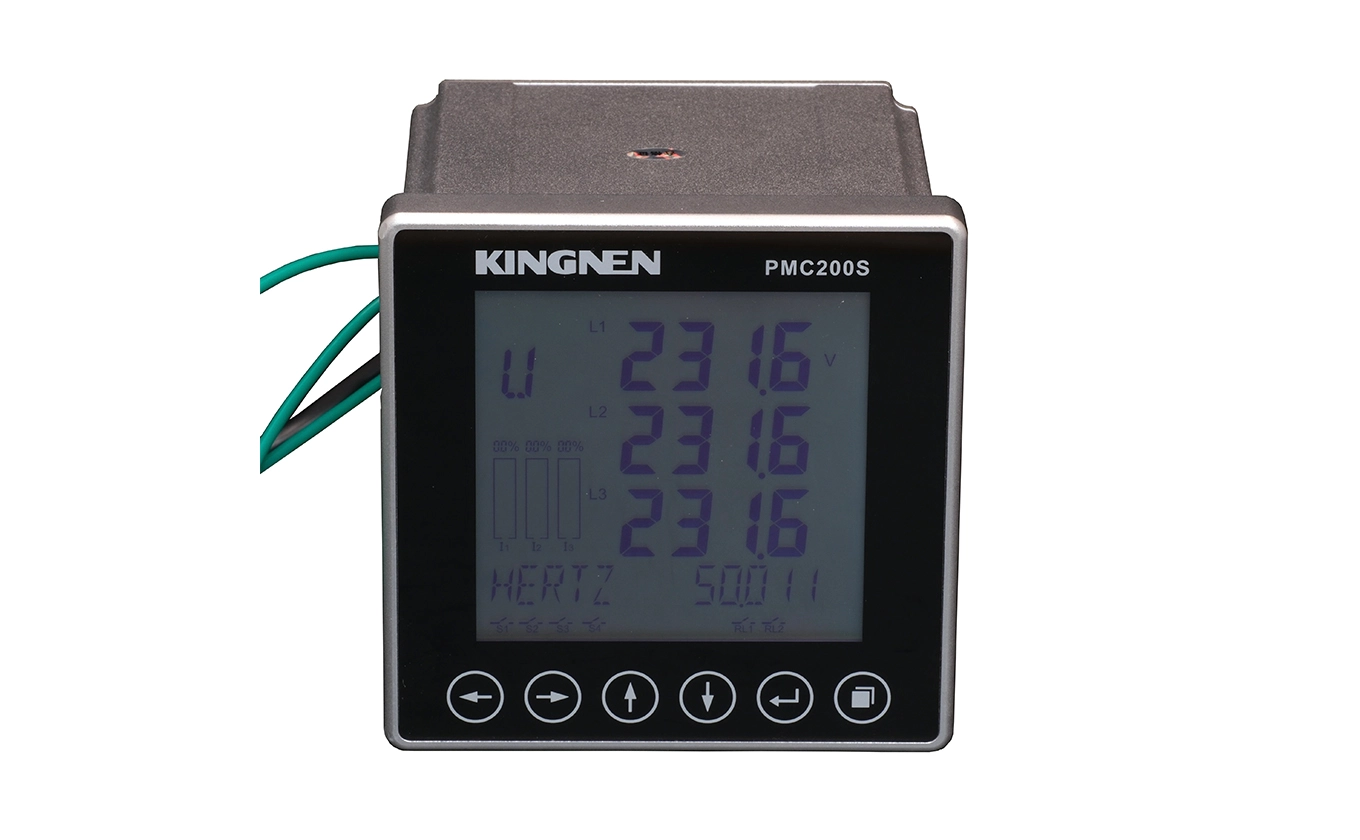

KINGSINE 220VAC/5A Multifunctional Power Meter for Power Management PMC200S

Name: 220VAC/5A Multifunctional Power Meter for Power Management PMC200S
Brand: Kingsine Electric Automation Co.,Ltd.

Item No.: 206166

PMC200 Power Parameter Tester is widely used for energy management system, substation automation, distribution network automation, subdistrict power distribution, industrial automation, intelligent building, intelligent switchboard, switch cabinet, etc. It integrates the digitization, intellectualization and networking together, to replace the traditional equiptments such as electric quantity transducer, numeric display instrument, data acquisition unit and recorder analyzer, etc. The multi-purpose lows the cost, and the simple wire connection simplifies the testing.

Get A Guote

Description

Specification

Ordering Instruction

Functions and Features

Parameter Measurement	Current
	Voltage
	Active/Reactive/Apparent Power
	Power Factor
	Frequency
	Phase and Neutral Line
	Wire Line and Phase Line
	3 Phases and Single Phase
	3 Phases and Single Phase
Energy Measurement	Input/Output Active Energy
	Input/Output Reactive Energy
	Apparent Energy
	1 Channel Pulse Output
	1 Channel Pulse Output
Demand Statistics	Current
	Active/Reactive/Apparent Power
	Current Value and Max.
	Current Value and Max.
Max and Min	Record the max, min and time of all measurement parameters
Restoration Rate	8 Restoration Stages; 4 Restoration Rate can be set
Power Quality	Harmonic Distortion
	31 times Harmonic Analysis
	Current and Voltage
	Current and Voltage
Communication Protocol	MODBUS-RTU
Display	STN LCD Display with big screen
	Real-Time Clock
	Year/Month/ Day/Hour/Minute/Second
Relay Output Module	2 Channels Relay Output
	Programmable Alarm Setting of exceeding the limit
	Remote Control
Analog Input and Output Module	1 Channel Analog Input Measurement for 4-20mA DC
	1 Channel Analog Input Measurement for 0-5V DC
	2 Channels Analog Output for 4-20mA DC

Electrical characteristics
Measure Type		3P3W AC system, 3P4W AC system
Sampling rate		128 points per cycle
Data refresh rate		1S
Measure accuracy	Current	±0.2%FS
	Voltage	±0.2%FS
	Power	0.5S
	Frequency	±0.001Hz
	Active Energy	0.5S
	Reactive Energy	1.0S
	DC input(AI)	0.5% FS
	DC output(AO)	0.5% FS
Input voltage characteristics	Measure Voltage	3 *220/380V(Directly input)
	Measure Voltage	3 * 57.7/100V(PT secondary side)
	Allowed overload capability	1.2 times / continuous
	input resistance	300KΩ
Input current characteristics	Measure current	5A (CT Secondary side)Or 1A (CT Secondary side)
	Allowed overload capability	1.2 times / continuous
	input resistance	<0.1Ω
Binary input	Working voltage	12~24 VDC
	input resistance	12KΩ
	Isolation voltage	2KV
Relay Output	Node type	Mechanical contact
Relay Output	Node capability	220 VAC/5A, 30 VDC/5A
4-20mA DC input measurement	Measure current	4-20mA
	Allowed overload capability	1.2 times / continuous
	input resistance	10Ω
	Isolation voltage	2KV
0-5V DC input measurement	Measure Voltage	0-5V
	Allowed overload capability	1.2 times / continuous
	input resistance	12.5KΩ
	Isolation voltage	2KV
4-20mA DC output	Open-circuit Voltage	15VDC
	Load capability	≤600Ω
	Isolation voltage	2KV
Power supply	AC	100~240 VAC/45-65Hz
	DC	100~375 VDC
	Power consumption	< 3W
Mechanical performance
Weight		0.5kg
IP Protection Level		Meter Panel IP52, Meter Host IP30
Dimension	Host	96 X 96 X 72 mm
Dimension	Host+modules	96 X 96 X 120 mm
Working temperature	Display screen	-20~70℃
Working temperature	Meter	-25~70℃
storage temperature	Meter+display screen	-40~85℃
Relative humidity		5% - 90%RH, No condensation
EMC
Antistatic discharge interference		IEC 61000-4-2, Level 4
Anti-fast transient group pulse		IEC 61000-4-4, Level 4
Anti-surge		IEC 61000-4-5, Level 3
Resistance to power frequency magnetic field		IEC 61000-4-8, Level 3
Electrical insulation performance
Insulation resistance		GB/T13729, >50MΩ
Power frequency withstand voltage		GB/T13729, AC 2KV 50Hz /1min
Impulse voltage		GB/T13729, 5KV, 1.2/50us

Model Specification: PMC200S-①-②-③-④-⑤
①Model code:
1	57.7/100V Rated measurement voltage, 5A Rated measurement current
2	57.7/100V Rated measurement voltage, 1A Rated measurement current
3	220/380V Rated measurement voltage, 5A Rated measurement current
4	220/380V Rated measurement voltage, 1A Rated measurement current
②Model code:
1	Power supply: 85~264 VAC/45-65Hz, 100~300 VDC
③Model code:
0	Without DI
4	4 Channels DI
④Model code:
0	Without relay output
1	Optional 1 channel relay output(RL1+, RL1- port)
2	Optional 2 channels relay output
⑤Model code:
ab	ab is a 2 integer, a means AI01 port optional for AI/AO modules, b means AI02 port optional for AI/AO
	0 –none
	1 - 0-5V DC analog input measure(AI)
	2 - 4-20mA DC analog input measure(AI)
	3 - 4-20mA DC analog output(AO)
	For example: ab = 00, Means AI 01 port is not equipped with AI/AO module, AI02 port is not equipped with AI/AO module
	ab = 12, Means AI01 port is equipped with 0-5V DC analog input measure AI/AO module, AI02 port is equipped with 4-20mA DC analog input measure AI/AO module

For example: Order model: PMC200S-3-1-4-2-12.
Means PMC200S rated measure 220V/380V, 5A, working power supply as 85-264VAC/45-65HZ, Optional with 4channels binary input(DI), 2 channels relay output; 1 channel 0-5V DC analog input measure(AI01 port), 1 channel 4-20mA DC analog input measure(AI02 port).
